Anybody who works in the AEC (Architecture, Engineering, and Construction) industry knows about AutoCAD. It is one of the oldest and most recognizable digital design software. Masters of AutoCAD can create detailed drawings that show clients exactly what they can expect from construction work. AutoCAD also has a ton of depth. You could work with it for years and still not use all of what it has to offer. That’s where this guide will come in handy!
Let’s speed up your AutoCAD skills by looking at six little AutoCAD secrets that you may not know.
1. Close All

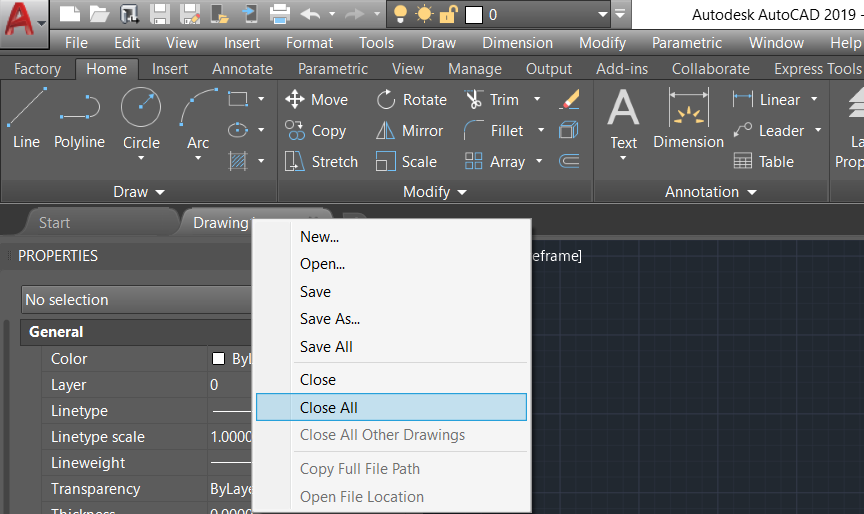

The Close All command is an invaluable tool for those who often work with multiple files simultaneously. Imagine having ten different drawings open, and you need to close them quickly without clicking each one individually. The Close All command allows you to do just that, saving precious time and streamlining your workflow. To use this command, simply type CLOSEALL in the command line, and all open drawings will close immediately. This command is especially useful when you need to switch between projects rapidly or when you’re wrapping up a session and want to ensure all files are closed properly.
Source: AutoDesk Forums
2. Content Explorer

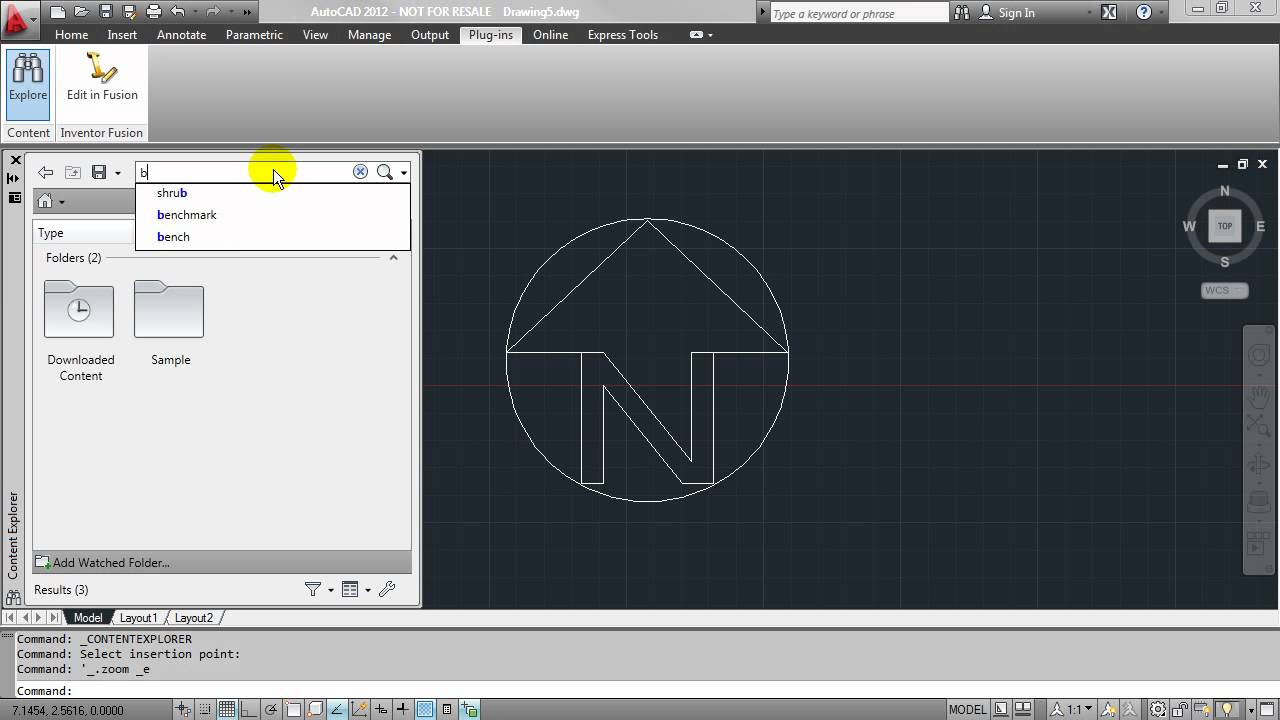

Navigating through a multitude of layers and files can be daunting, but AutoCAD’s Content Explorer makes this task much more manageable. Found under the Content panel, the Content Explorer allows you to search with keywords, helping you find layers, blocks, and other elements quickly. This feature is particularly useful in large projects where elements can be easily lost in the clutter. By streamlining the search process, Content Explorer can significantly reduce the time spent on locating specific components within your drawings.
3. Grouping Over Blocks

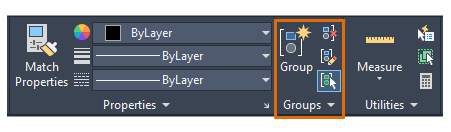

While both groups and blocks are essential tools in AutoCAD, understanding their differences and knowing when to use each can enhance your design efficiency. Grouping allows for easy editing of multiple objects as a single unit without the rigidity of blocks. This flexibility is beneficial during the initial design phase when frequent adjustments are needed. Once the design stabilizes, you can convert these groups into blocks for more structured manipulation. This method leverages the best of both features, providing flexibility during design and structure during the final stages.
Source: help.autodesk.com
4. Join Command

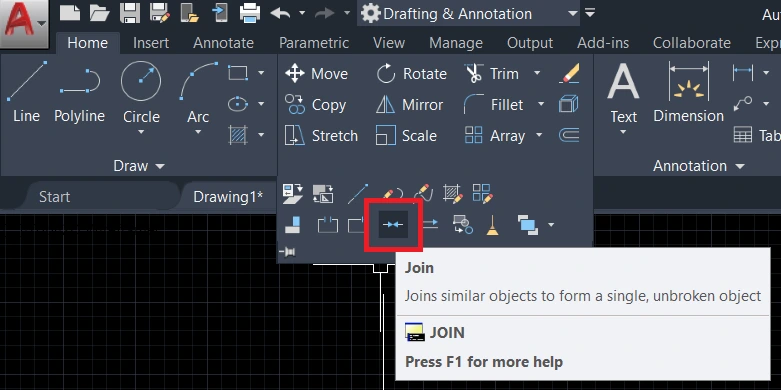

The Join command is a simple yet powerful tool that can greatly improve the precision and continuity of your drawings. By connecting multiple lines into a single polyline, the Join command helps prevent unwanted edits and disconnections. This is particularly useful when creating complex shapes or outlines that require a continuous path. To use this command, type JOIN in the command line, select the lines you wish to connect, and AutoCAD will merge them into a single entity. This reduces the likelihood of errors and ensures a smoother workflow.
Source: AutoCAD
5. Chamfer
Creating neat and precise corners is essential in many design projects, and the Chamfer command excels in this area. It allows you to create beveled edges at the intersection of two lines with various customization options. You can specify the chamfer distance and angle to suit your design requirements. Additionally, using the Shift key while executing the Chamfer command resets the chamfer distance to zero, allowing for quick adjustments. This command is invaluable for producing professional and clean corners in your drawings.
Source: Javatpoint
6. Adding Blocks

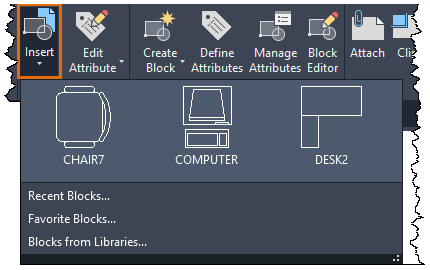

Managing frequently used blocks efficiently can save a significant amount of time. AutoCAD’s Design Center is a powerful feature that helps you organize and insert blocks from different files. To add blocks, navigate to the Design Center, select the file containing the blocks, and simply drag and drop them into your current drawing. This feature ensures that you have quick access to commonly used blocks, streamlining the design process and maintaining consistency across projects.
Source: Autodesk Knowledge Network
Enhance Your AutoCAD Skills
While these six tips can significantly improve your efficiency in AutoCAD, there is always more to learn. AutoCAD is a vast software with countless features and capabilities. To truly master AutoCAD and polish your design skills, consider enrolling in an advanced course. Learning from experts and practicing regularly will keep you updated with the latest features and best practices.
Conclusion
Mastering AutoCAD requires continuous learning and practice. The six secrets highlighted in this guide are just the tip of the iceberg. By incorporating these tips into your workflow, you can enhance your productivity and create more detailed and accurate designs. Remember, the key to becoming proficient in AutoCAD is to explore its features, stay updated with new tools, and never stop learning. Want to learn AutoCAD in detail along with polishing your design skills?
AutoCAD’s depth and versatility make it a powerful tool in the AEC industry. By leveraging its features effectively, you can transform your design process and deliver exceptional results to your clients. Happy designing!
